The performance of a spring is determined long before it is installed in a machine. Material preparation, forming accuracy, heat treatment, dimensional inspection, and surface finishing all influence the final product. For manufacturers supplying industrial equipment, automotive assemblies, medical devices, and electrical products, producing a reliable Stainless Steel Wire Forming Spring requires a carefully controlled manufacturing process rather than simply bending a piece of wire into shape.

Modern wire forming technology has transformed spring production from manual operations into highly automated manufacturing. Computer-controlled equipment allows complex wire geometries to be produced with consistent dimensional accuracy while maintaining the mechanical properties required for repeated elastic movement.

The manufacturing process usually begins with raw material selection. Stainless spring wire is commonly produced in grades such as SUS302, SUS304, SUS316, and 17-7PH. These materials are manufactured specifically for spring applications and are covered by standards including ASTM A313, which specifies chemical composition, tensile strength requirements, bend testing, wrap testing, and other mechanical verification methods for stainless spring wire.

Choosing the appropriate material depends on the intended working environment. Grade 302 provides balanced strength and flexibility for general industrial use. Grade 304 offers improved corrosion resistance for food equipment, automation machinery, and commercial products. Grade 316 is frequently selected for marine or chemical environments because its molybdenum content improves resistance to chloride corrosion. Applications requiring relatively high fatigue strength may benefit from 17-7PH stainless steel after precipitation hardening.

After material verification, spring wire enters the straightening stage. Even though stainless wire is supplied in coils, precision forming requires the material to pass through a multi-roller straightening system before entering the CNC wire former. Proper straightening reduces residual curvature and improves dimensional repeatability throughout production.

Wire diameter is another important parameter. Typical Stainless Steel Wire Forming Spring products are manufactured using wire diameters ranging from approximately 0.20 mm to 8.00 mm. Electronic devices often require wire below 0.50 mm, while industrial equipment commonly uses diameters between 1.20 mm and 5.00 mm. Larger machinery may require even heavier wire depending on structural loading.

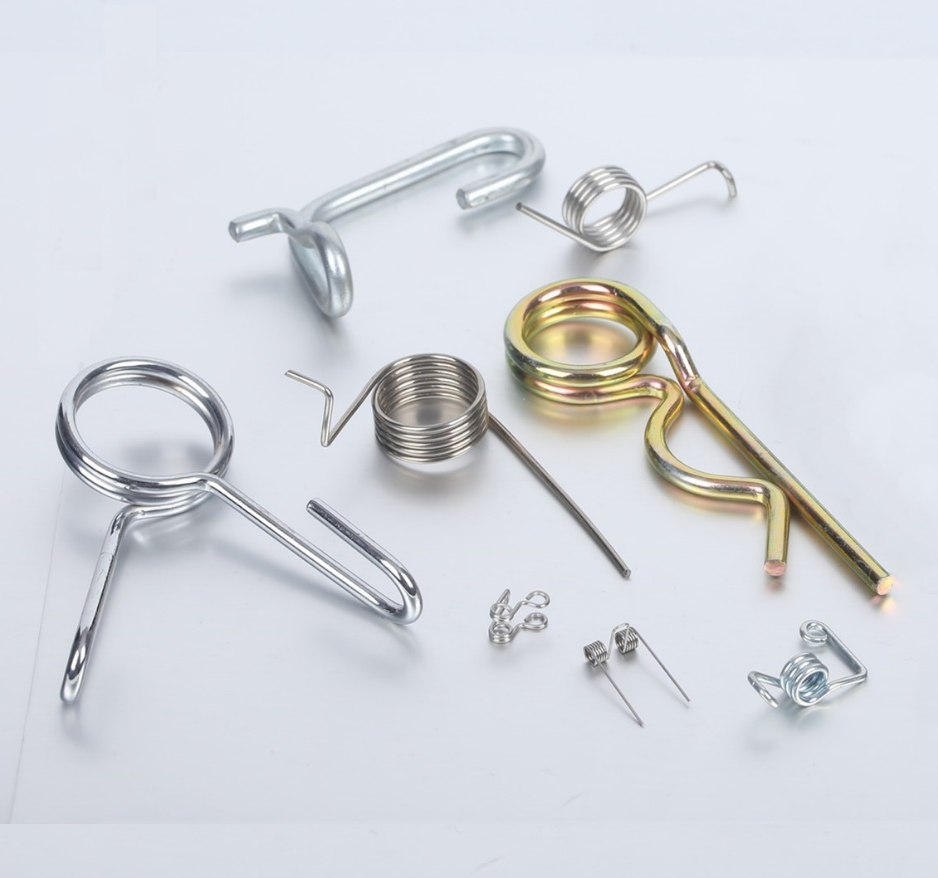

The forming stage is where customization truly begins. Modern CNC wire forming machines use programmable tooling to create bends, loops, hooks, clips, torsion arms, retaining tabs, and three-dimensional profiles. Because every product has unique installation requirements, virtually every wire form can be customized without changing the basic manufacturing process.

Unlike conventional compression springs, wire forming springs frequently perform multiple mechanical functions simultaneously. One component may guide movement, provide retention, absorb vibration, maintain positioning, and generate elastic force within the same assembly. This integration reduces component count while simplifying product assembly.

Precision during forming directly affects final performance. Manufacturers commonly maintain production tolerances such as:

Wire diameter tolerance of ±0.01 mm to ±0.03 mm.

Linear dimensional tolerance near ±0.10 mm.

Angular tolerance between ±1° and ±2°.

Smooth transition radii to reduce localized stress.

Burr-free edges that simplify installation.

These tolerances help maintain compatibility with automated assembly equipment and reduce variation between production batches.

Following the forming operation, many springs undergo stress relieving. Cold forming introduces residual internal stress into the stainless wire. Controlled heat treatment reduces these stresses while improving dimensional stability and helping the spring maintain its designed geometry during repeated service. Age-hardening stainless grades such as 17-7PH require additional heat treatment to achieve their intended strength and fatigue properties. ASTM A313 includes requirements for mechanical performance after the appropriate processing conditions.

Surface quality also contributes significantly to long-term durability. Tiny scratches, tooling marks, or surface defects can become fatigue crack initiation points under repeated loading. Manufacturers therefore monitor tool wear, lubrication, wire cleanliness, and forming speed throughout production.

Passivation is frequently performed after manufacturing. This treatment removes free iron contamination from the stainless surface and promotes formation of a stable chromium oxide layer. The result is improved resistance to moisture, cleaning chemicals, and outdoor exposure without changing the spring's dimensions.

Quality inspection extends throughout the production process rather than being limited to final packaging. Incoming raw materials are verified for diameter consistency, chemical composition, and tensile properties. During production, operators inspect critical dimensions using optical measuring equipment, digital calipers, coordinate measuring systems, and custom gauges.

Mechanical testing may include spring force measurement, tensile testing, bend testing, wrap testing, hardness verification, and fatigue evaluation depending on customer specifications. For demanding industrial applications, manufacturers may also conduct salt spray testing, metallographic examination, or corrosion resistance verification to ensure stable long-term performance. These inspection methods are consistent with the types of mechanical evaluations referenced within ASTM A313 for stainless spring wire.

Automation has significantly improved manufacturing efficiency. CNC equipment can store multiple production programs, allowing rapid changeovers between different spring designs. This flexibility supports both prototype development and large-volume production without sacrificing dimensional consistency.

Production engineers also evaluate process capability by monitoring forming accuracy over extended manufacturing runs. Stable tooling, controlled feeding speed, and repeatable machine calibration reduce dimensional drift and improve product consistency. Statistical quality control methods are often applied to verify that critical dimensions remain within specified tolerances throughout production.

Packaging should not be overlooked. Finished springs are generally protected from excessive compression, contamination, and mechanical damage during transportation. Clean packaging helps preserve surface quality before assembly into customer products.

As modern equipment becomes more compact and mechanically integrated, manufacturers increasingly require customized components that combine several functions into one design. A precision-manufactured Stainless Steel Wire Forming Spring meets these expectations through accurate CNC forming, carefully selected stainless materials, controlled heat treatment, comprehensive quality inspection, and corrosion-resistant surface finishing. Each manufacturing stage contributes to consistent elastic performance, dimensional stability, and dependable operation across a broad range of industrial applications.
