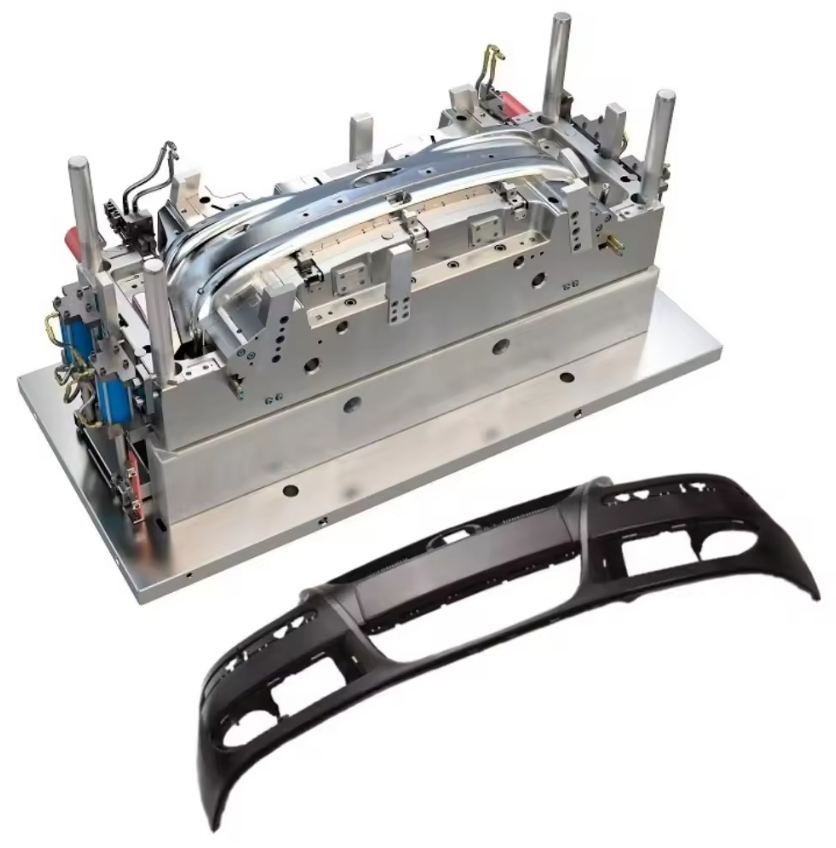

The design of automotive bumper molds is a highly technical process involving structural engineering, thermal management, and flow simulation. A Front Bumper Molding Manufacturer must integrate all these factors to ensure stable mass production and consistent dimensional accuracy.

Mold Structure and Steel Selection

Bumper molds are typically large-scale tooling systems weighing several tons. Common steel materials include:

P20 for core structures (hardness around HRC 28–32)

H13 for high-wear cavity zones (HRC 44–48 after heat treatment)

These steels provide thermal resistance and durability under repeated injection cycles exceeding hundreds of thousands of shots.

Cavity Layout and Multi-Gate Systems

Due to the large size of bumper components, multi-gate hot runner systems are widely used. Gate design must ensure:

Balanced flow distribution across 1000–1600 mm cavity length

Controlled weld line positioning away from visible surfaces

Stable melt pressure across all flow channels

Gate diameter typically ranges from 3.5 mm to 6.0 mm depending on material viscosity.

A Front Bumper Molding Manufacturer uses simulation tools to optimize gate placement before machining begins.

Cooling System Engineering

Cooling design is one of the most critical aspects of mold performance. Uneven cooling can result in warpage and shrinkage variation.

Standard cooling parameters include:

Channel diameter: 8–14 mm

Distance to cavity surface: 10–18 mm

Water temperature: 12°C–25°C

Flow rate: adjusted per zone geometry

Conformal cooling channels are sometimes used in complex bumper molds to improve heat distribution efficiency.

Ejection System Design

Because bumper parts are large and flexible, ejection must be carefully controlled to avoid deformation. Common systems include:

Hydraulic ejector pins

Air-assisted release systems

Side core pull mechanisms for undercut areas

Ejection force must be evenly distributed to prevent stress marks or cracking.

Mold Flow Simulation and Optimization

CAE analysis is widely used to predict:

Filling pattern

Pressure distribution

Air trap locations

Cooling efficiency

Shrinkage behavior

Simulation helps reduce trial-and-error iterations and shortens mold development cycles.

A Front Bumper Molding Manufacturer relies on these predictive models to refine tooling design before production.

Conclusion

Bumper mold engineering integrates structural design, thermal control, and flow analysis into a unified system. A well-developed Front Bumper Molding Manufacturer ensures precision tooling performance, stable production cycles, and consistent part quality across automotive programs.
